Dropped the back box off (snapping the bolts on the clamping brackets in the process) and set to work cleaning up the brake pipes and unions. Over the last few days I've dosed it a few times in penetrating spray and have two out of the four brake unions loose and both the bolts that... Continue Reading →

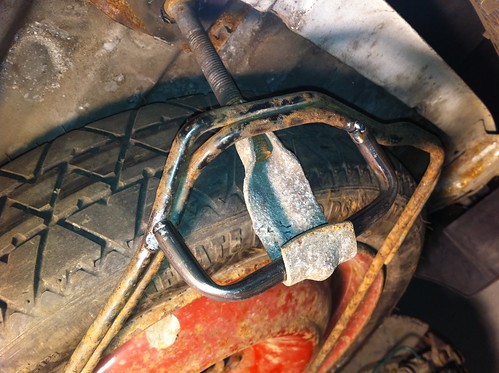

Tackled the spare wheel cage today. I had some mild steel tubing, so made up an extra section - tacked in place: Neither the cage or spare wheel move about now. Welded up the additional section, cleaned the whole frame and gave it two coats of POR15 so should be able to get it fitted... Continue Reading →
The car didn't pass the MOT. The rear disc brakes were ineffective, the Carbon Monoxide was excessively high and one the headlights was slightly out with its aim. Headlight is easy. Exhaust is likely to be the catalytic converter which looks fairly ancient. So sourced a new one for £54 complete with a fitting kit.... Continue Reading →
Waiting for the MOT!
A few updates from the last few days... Friday: Thanks to a fellow 106 Rallye Register member who is breaking a car, I now have a pair of doors, a washer pump (of unknown working property) and some other bits and pieces. Hopefully get a big push on this over the weekend to finish it.... Continue Reading →

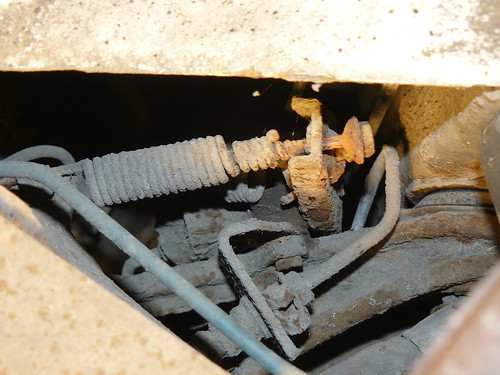

Tightened up the handbrake cable so it is now on at the second click. Took the quickshift off. The bearing was really tight so I decided to loosen it up. Soaked it in this: Then used an appropriate sized socked and an extension bar and worked it in circles for 5 minutes. Applied some heat... Continue Reading →
I had an hour one evening earlier in the week so had the car out of the garage and ran the engine until the fan kicked in then carefully drove it back in. The only brakes the car had were the hand brake… Up on axle stands,Wheels off, drained the oil out of the block... Continue Reading →
Managed to make it to the small car parts shop around the corner from home before it closed tonight after work and picked up a brake union spanner. A couple of blasts of heat from the blowtorch and a swift thwack and I managed to get the unions undone. Opened up all the bleed nipples... Continue Reading →
Bit more progress tonight. Finished drilling out the two of three sheared torx screw bits that hold the discs to the drive flange hubs. One more to do tomorrow, I just ran out of time tonight. Most of the time was spend sorting the sheared rear anti roll bar end plate bolt. Drilled and tapped... Continue Reading →

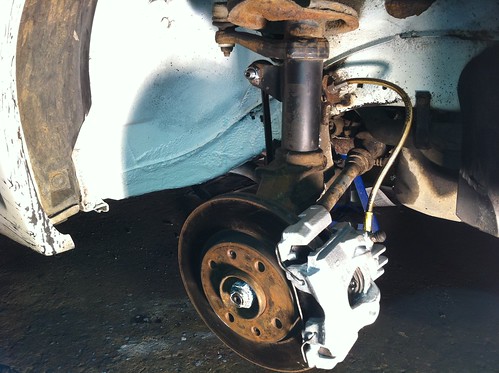

Had a very frustrating few days. Finished painting and rebuilt the brakes: Went to remove the old discs and only one of the torx bits came out. Two sheared at the threads. One sheared at the torx head! Bastard things. I had applied heat to them as well and tried impact driving them. So in... Continue Reading →
Very little done today. Managed to top coat the calipers and seam seal the N/S gusset repair section - tie coat primer goes on both side tomorrow. One of the orders I am waiting for contains the proper plugs for the gussets as I am missing some and don't have enough to put it all... Continue Reading →
Yesterday with the chassis rail and gusset repair section for the near side ready, welded the repair section on and then prepped it for paint. Prepped Fitted Also seam sealed the O/S section that had previously been POR'd. Not pretty, but no one is going to see it once it's covered in Gravitex and painted.... Continue Reading →
Rallye Project
